What Is Seamless Steel Pipe? Manufacturing Process and Applications
Seamless steel pipe is a tubular product manufactured without any welded seam. It is produced by heating a solid round billet and piercing it to form a hollow tube, which is then rolled and sized to the required dimensions. Because there is no weld joint, the pipe has uniform wall thickness and strength around its entire circumference, which makes it the preferred choice for high-pressure, high-temperature, and safety-critical applications.
This guide explains how seamless steel pipe is made, the main types available, why it outperforms welded pipe in demanding service, and where it is used across industry.
How Seamless Steel Pipe Is Made
The seamless manufacturing process starts from a solid steel billet and follows several stages:
- Billet heating: A solid round billet is heated in a rotary hearth furnace to approximately 1200°C to make the steel plastic enough for deformation.
- Rotary piercing: The heated billet is passed between two rotating barrel-shaped rolls that pull the material forward while a fixed piercing plug forces a hole through the center, creating a thick-walled hollow shell.
- Rolling: The hollow shell passes through a mandrel mill, plug mill, or cross-roll piercer to stretch it and reduce wall thickness to the target dimensions.
- Sizing and straightening: A sizing mill refines the outer diameter within tight tolerances, and the pipe is straightened, cut to length, and inspected.
- Finishing: Depending on the grade and standard, the pipe may be heat-treated, pickled, tested (hydrostatic, ultrasonic, or eddy current), and surface-finished.
For thinner walls and tighter tolerances, seamless pipe can be further processed by cold drawing or cold rolling, which also improves surface finish and mechanical properties.
Types of Seamless Steel Pipe
Seamless pipes are classified mainly by material grade and the standard they are manufactured to:
- Carbon steel seamless pipe: The most common category, covering general service and pressure applications. Typical standards include ASTM A106 (high-temperature service), ASTM A53, and Chinese standard GB 8163.
- Line pipe: Seamless line pipe is widely supplied to API 5L specifications (grades B, X42, X52, X60, X65) for oil and gas transmission.
- Alloy steel seamless pipe: Grades with added chromium and molybdenum (such as ASTM A335 P11, P22) for elevated-temperature power plant service.
- Stainless steel seamless pipe: Austenitic grades such as 304/304L and 316/316L per ASTM A312 for corrosive, hygienic, and high-purity service.
- Boiler and heat-exchanger tubes: Made to standards such as ASTM A179, A192, and GB 5310 for boilers, superheaters, and heat exchangers.
Key Advantages of Seamless Steel Pipe
- No weld seam: Eliminates the weld as a potential weak point, giving uniform strength around the full circumference.
- Higher pressure ratings: Can reliably withstand higher internal pressures than welded pipe of the same size and wall thickness.
- Better fatigue and impact performance: The homogeneous structure handles cyclic loading, vibration, and temperature changes more predictably.
- Reliability in critical service: Preferred for oil and gas, chemical, and power applications where a failure is unacceptable.
- Cleaner bore: No internal weld bead to clean or inspect, which matters in hygienic and flow-critical lines.
Common Applications of Seamless Steel Pipe
Because of its strength and reliability, seamless pipe is used wherever pressure, temperature, or safety requirements are demanding:
- Oil and gas industry: drilling, wellhead equipment, gathering lines, and transmission pipelines
- Chemical and petrochemical plants: process piping, reactors, and heat exchangers handling corrosive or pressurized media
- Power generation: boiler tubes, superheater tubes, and steam lines in thermal and nuclear plants
- Hydraulic and pneumatic systems: high-pressure cylinders, accumulators, and precision mechanical tubing
- Automotive and machinery: axles, drive shafts, bearing races, and structural components
Seamless vs Welded Steel Pipe
| Factor | Seamless Pipe | Welded Pipe |
|---|---|---|
| Weld seam | None | Longitudinal or spiral weld |
| Pressure capacity | Higher (uniform strength) | Lower at the weld zone |
| Size range | Limited by billet size (typical max ~24–26 inch OD) | Virtually unlimited diameters |
| Wall uniformity | Excellent | Good |
| Cost | Higher | Lower |
| Typical use | High pressure, critical service | Large diameters, structural, low pressure |
Where to Buy Seamless Steel Pipe
When sourcing seamless steel pipe, verify the grade, standard, wall thickness schedule, and mill test certificate before ordering. Shaanxi Shuncheng Tian Steel supplies carbon, alloy, and stainless seamless steel pipes in standard and custom sizes with strict quality control on every batch. Send us your specification for a current quotation and lead time.
FAQ
Is seamless pipe stronger than welded pipe?
For the same size and grade, seamless pipe generally offers higher pressure capacity because it has no weld zone that could act as a weak point. That is why it is specified for high-pressure and critical service.
What is the difference between seamless and ERW pipe?
Seamless pipe is formed from a solid billet with no joint, while ERW (electric resistance welded) pipe is formed from a strip and welded longitudinally. ERW is more economical and available in larger diameters, but seamless is preferred where pressure and reliability demands are highest.
Can seamless pipe be used for oil and gas pipelines?
Yes. Seamless pipe is widely used for oil and gas gathering lines and smaller-diameter transmission lines, typically to API 5L specifications. For very large diameters, welded line pipe is the standard choice.
Related Product

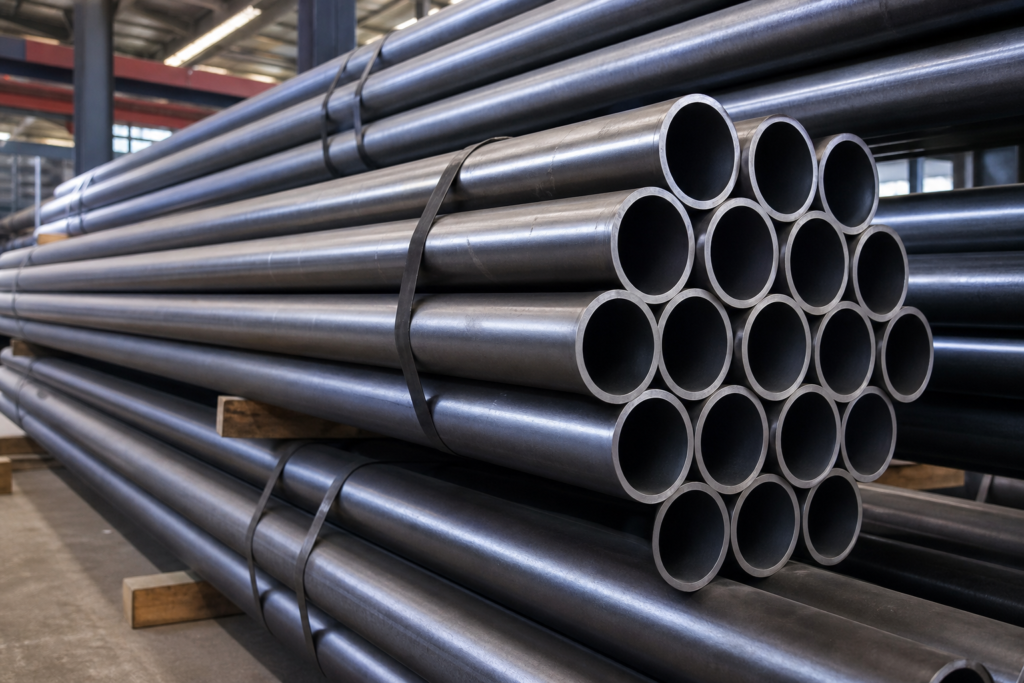

Looking for a specific size? Our Seamless Carbon Steel Pipe 20# 6 inch Sch 40 is available for export with mill test certificates — see the full specification table and request a mill-direct quote.
