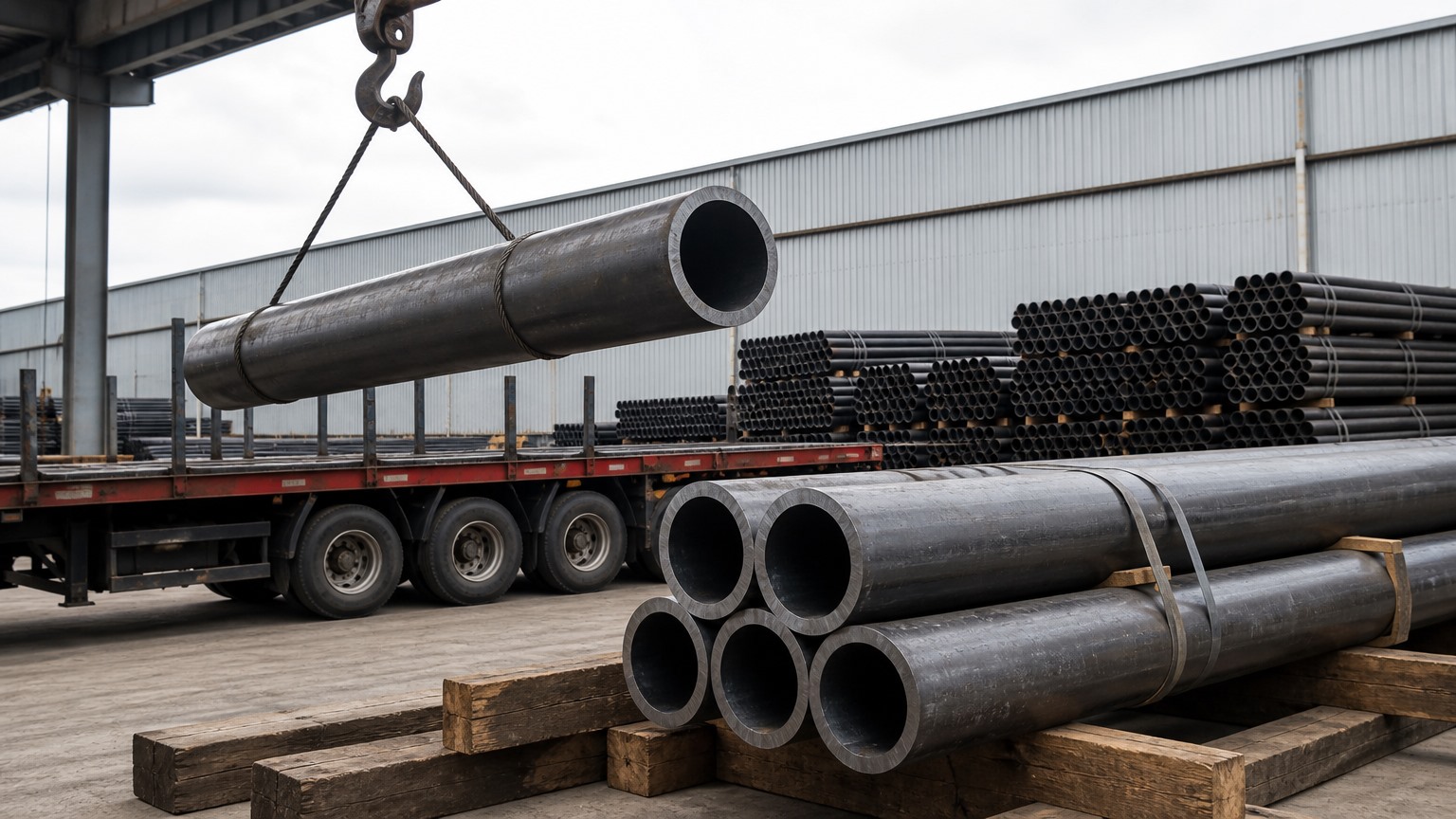

Boiler Steel Pipe 20G 6 inch Sch 60

Boiler steel pipe 20G 6 inch Sch 60 is a seamless carbon steel tube supplied with a 168.3 mm nominal outside diameter and a heavy-wall Sch 60 section. Grade 20G is a low-carbon boiler quality steel to GB/T 5310, produced for high-pressure steam, superheater and main steam service in power plants and industrial boiler plants.

Specifications

This item sits within our wider range of boiler steel pipe and carbon steel products, supplied in boiler, line pipe and structural grades from 1/2 inch to 24 inch.

Applications

Typical applications include superheater and reheater tubes, economiser coils, header piping and main steam lines in thermal power stations. Grade 20G holds carbon to 0.17–0.23 percent and manganese to 0.35–0.65 percent, giving a minimum yield strength of 245 MPa and a tensile range of 410–550 MPa. The low carbon content keeps the heavy wall bendable, weldable and expandable during membrane wall and header fabrication, and the pipe is normally delivered with a mill test certificate covering chemical composition, tensile and flattening results.

Inquire Now

Need a quotation for 6 inch Sch 60 20G boiler steel pipe? Contact us with your quantity, wall thickness, length and destination port — our export team replies within 24 hours.
