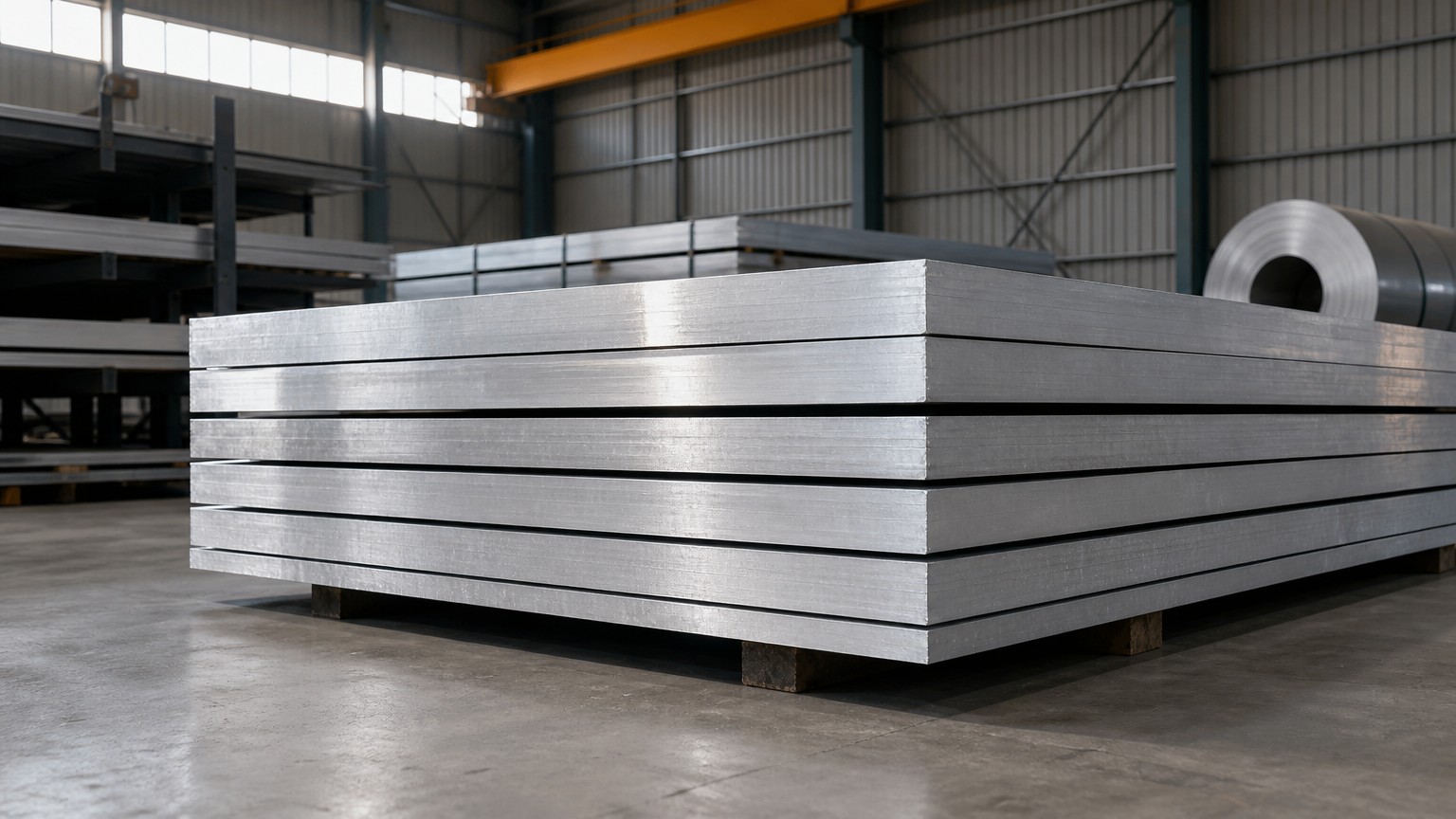

Aluminum Plate 5052 3mm
5052 aluminum plate in 3 mm thickness is a workhorse alloy for marine, transport and general fabrication work. Supplied in H32 and H34 tempers, 3 mm 5052 sheet pairs good formability with the best corrosion resistance of the common non-heat-treatable alloys, which is why it fits fuel tanks, boat hull panels and pressure-rated enclosures. At a density of roughly 2.68 g/cm³ it also saves weight against steel at comparable stiffness.
Specifications
| Property | Specification |
|---|---|
| Alloy / Grade | 5052 (Al-Mg, non-heat-treatable) |
| Standard | Supplied to ASTM B209 |
| Thickness | 3 mm |
| Width | 1220 mm / 1500 mm |
| Length | 2440 mm / 3000 mm, cut-to-length available |
| Temper | H32, H34 available; H36 and O on request |
| Surface | Mill finish; PVC protective film available |
| Edge | Sheared or saw-cut |
| Packing | Wooden pallet or eye-to-wall, export seaworthy |
Applications
Typical end uses include marine and offshore structures, fuel and oil tanks, truck body panels, pressure vessels, air ducting, electrical enclosures and architectural cladding. Because 3 mm 5052 plate welds cleanly and resists salt-water attack, fabricators specify it where a thin, formable sheet is needed without losing corrosion performance. Explore our full range of aluminum plate products for other thicknesses and alloys.
Request a Quote
For current 3 mm 5052 aluminum plate availability, temper options and export lead times, send your specification to our sales team for a quotation.
Related Reading
Not sure which alloy fits your project? Read our comparison guide on aluminum plate grades to see how 5052, 6061 and 7075 differ in strength, corrosion resistance and typical use.
