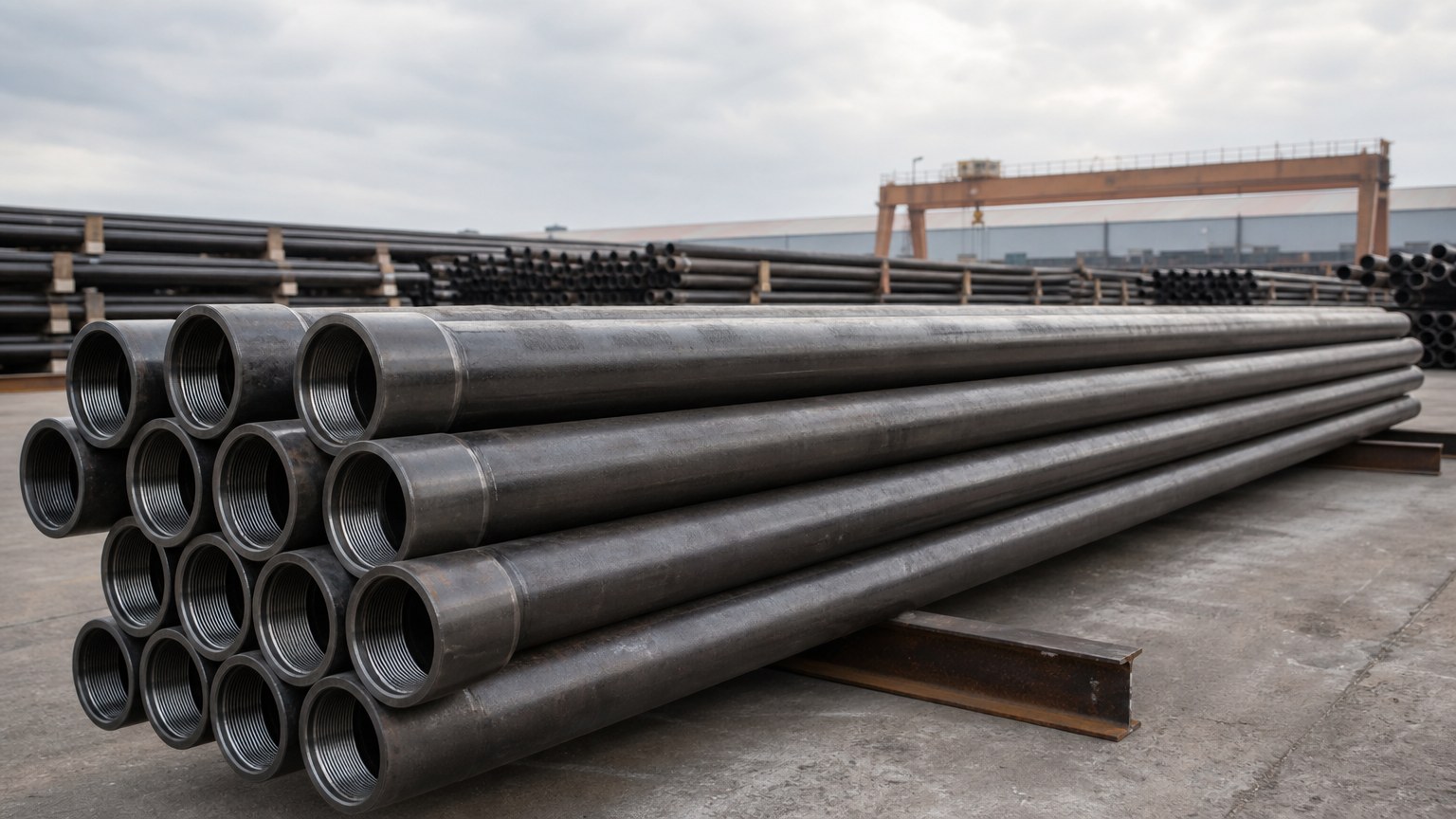

OCTG Casing Pipe 7 inch J55
Shaanxi Shuncheng Tian Steel Co., Ltd. supplies 7 inch J55 OCTG casing pipe manufactured to API 5CT for wellbore construction. The 7 in (177.8 mm) outside diameter is one of the most widely used casing sizes in the industry, and the J55 grade offers a practical strength level for shallow to medium-depth oil and gas wells, water injection wells and geothermal boreholes.
Specifications
| Grade | J55 |
| Standard | API 5CT (ISO 11960 equivalent) |
| Outside diameter | 7 in / 177.8 mm |
| Wall thickness | 0.317 in – 0.453 in (8.05 – 11.51 mm) |
| Weight | Supplied in 23.00, 26.00, 29.00 and 32.00 lb/ft |
| Length | Range R1, R2 or R3 per API 5CT |
| Ends | BTC, STC or LTC; couplings fitted |
| Surface | Black varnish or phosphate coated; plain end available |
| Packaging | Thread protectors, steel strapping in bundles, or per buyer requirement |
| Documents | Mill test certificate available per order |
Typical Applications
This 7 inch J55 casing is run as surface, intermediate or production casing, lining the drilled hole and protecting the wellbore against collapse and internal pressure. Typical users are oil and gas operators, water supply and injection well contractors, and geothermal or coal-bed methane projects. Because J55 is a weldable, moderate-yield carbon grade, the pipe is also ordered for conductor casing and shallow structural strings.
Request a Quotation
Send us your weight per foot, length range, thread type, quantity and destination port, and our team will confirm availability against current mill stock. Browse the wider OCTG casing pipe and carbon steel pipe range, or contact us for a quotation.
Related Reading
New to wellbore steel? Our guide to OCTG casing tubing explains how casing and tubing differ in function, dimensions and connection types.
