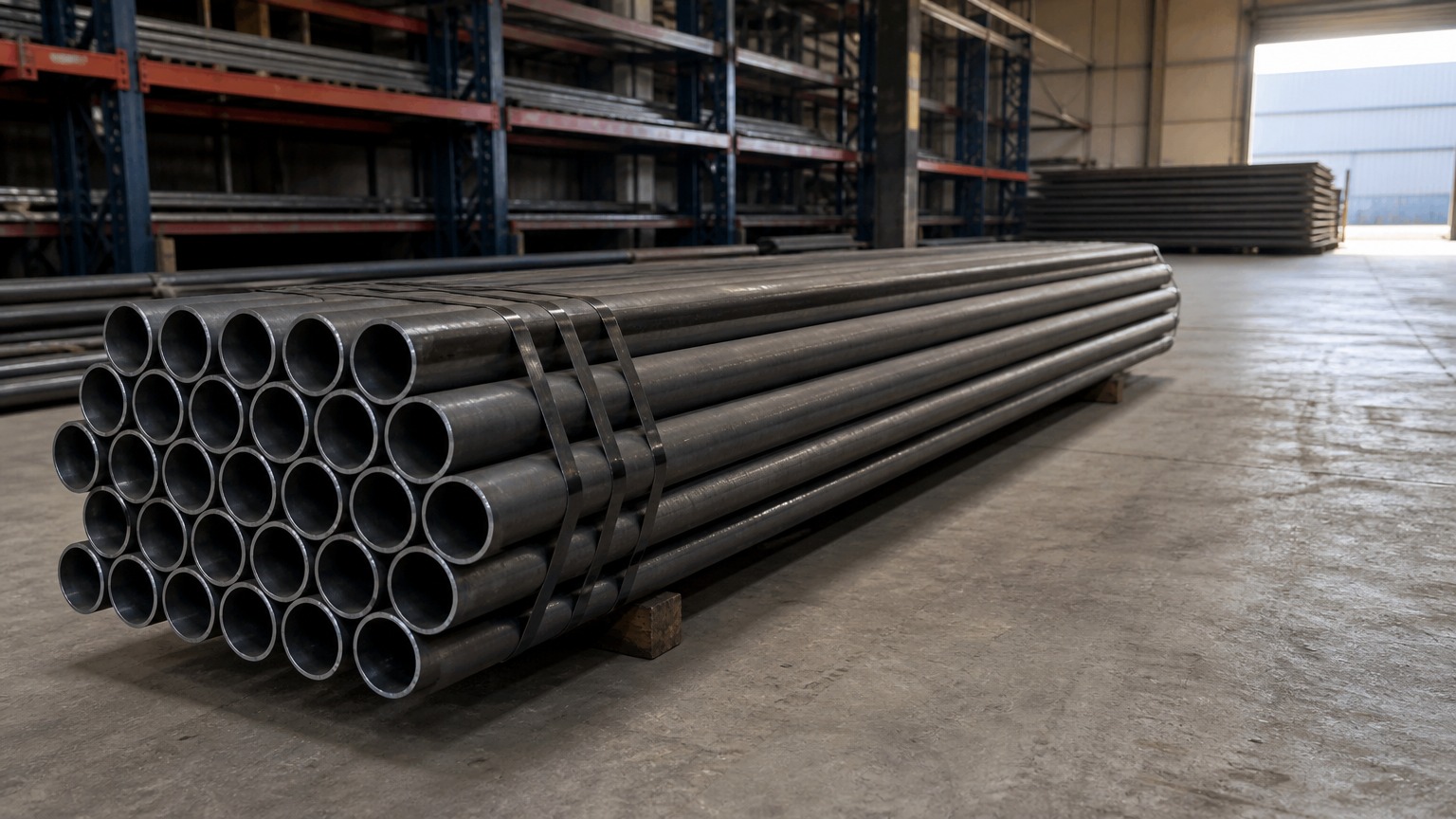

Boiler Steel Pipe 20G 2 inch Sch 80
This 2 inch Sch 80 boiler steel pipe is a seamless carbon steel tube produced to GB 5310 in grade 20G. It is used for high-pressure steam and water circuits in boiler systems, where the thicker wall adds pressure margin and oxidation resistance at temperature. Boiler bank, economiser and steam sampling lines are typical services.
Specifications
| Parameter | Value |
|---|---|
| Grade | 20G (GB 5310 carbon steel for boiler and pressure service) |
| Standard | GB 5310 supplied as standard; ASME SA-106 / SA-210 equivalents available on request |
| Outside diameter | 2 in (60.3 mm) |
| Wall thickness | Sch 80, 5.54 mm nominal; Sch 40 and Sch 160 available in the same diameter |
| Length | Supplied in 6 m, 9 m and 12 m random or fixed lengths |
| Surface | Black, pickled or shot-blasted; oiled on request for export |
| Ends | Plain, beveled or threaded to order |
| Packing | Bundled in hexagonal or round packs with end caps, mill markings and heat-number traceability |
Applications
2 inch Sch 80 grade 20G tubes are available for boiler bank and economiser tubes, superheater support and steam-sampling lines, feedwater piping and high-pressure steam tracing, as well as small industrial boilers and waste heat recovery units. The thicker wall is normally specified where a corrosion allowance or a higher design pressure is required. Tubes are supplied with mill test certificates, hydrostatic or eddy current testing and dimensional inspection on request.
Request a Quotation
Looking for 2 inch Sch 80 boiler steel pipe in GB 20G? Shaanxi Shuncheng Tian Steel Co., Ltd. supplies seamless boiler tubes with mill test certificates, heat-number traceability and export packing. Send your outside diameter, wall thickness, length and quantity to our team for a quotation. You can also browse our wider carbon steel boiler steel pipe range for other grades and sizes, or contact us directly for technical support.
Related Reading
Choosing a grade for high-pressure service? Our guide explains how sa-210 vs sa-106 differ in chemistry, tensile requirements and temperature limits, and which boiler tube grade fits your design conditions.
