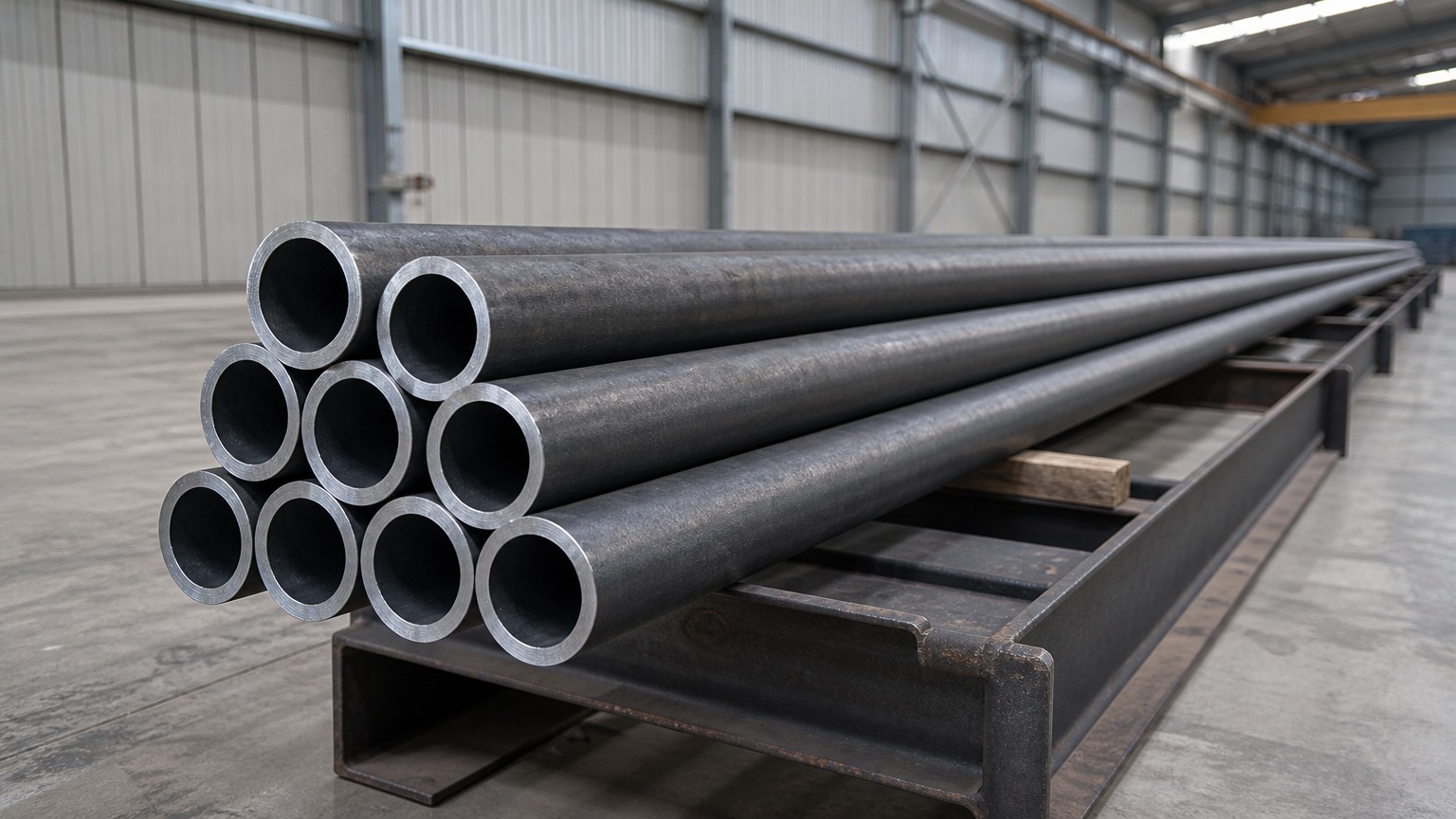

Boiler Steel Tube SA-213 T22 2 inch

ASTM A213 T22 is a 2-1/4 Cr – 1 Mo ferritic alloy steel boiler tube supplied in the seamless condition for elevated-temperature service. The 2 inch size is commonly ordered for superheater, reheater and heat exchanger sections in power and process boilers, where the grade’s creep strength and oxidation resistance match the operating metal temperature. Tubes are supplied normalized and tempered.

T22 sits in the middle of the boiler tube family. It carries more chromium and molybdenum than carbon steel grades, which lifts its high-temperature strength, but it is not a stainless grade. Buyers often specify it where an alloy boiler steel tube is required by the design but where austenitic or higher-alloy tubing would be unnecessary. Wall thickness follows the design pressure and temperature rather than the nominal size alone, so the same 2 inch OD is available in several wall thicknesses.

Specifications

Typical Applications

Typical uses include superheater and reheater tubing, economizer and heat exchanger tubes, and steam piping in fossil-fuel and industrial boilers. T22 is also specified for refinery and petrochemical heat exchangers where resistance to high-temperature oxidation matters. All dimensions above are supplied to order; no certification, pressure rating or price is implied by this page.

Request a Quotation

Send your required wall thickness, quantity and test requirements and we will confirm availability, mill test documentation and lead time for SA-213 T22 tube in 2 inch. Request a quote.

Related Reading

For a practical breakdown of the inspection methods used to verify this tube before shipment, read our guide on boiler tube testing.
